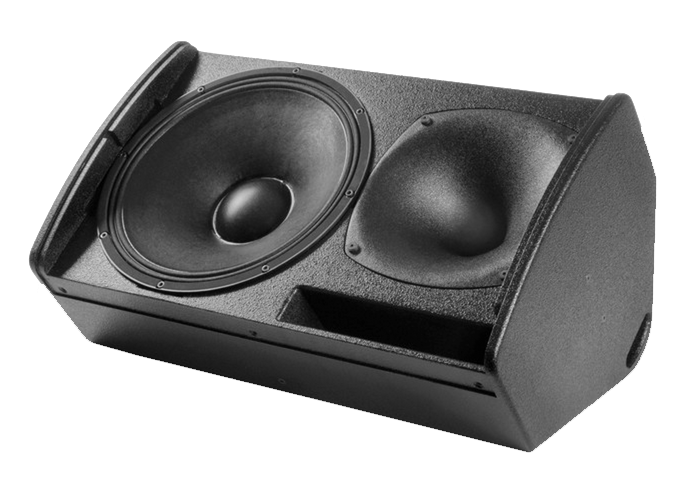

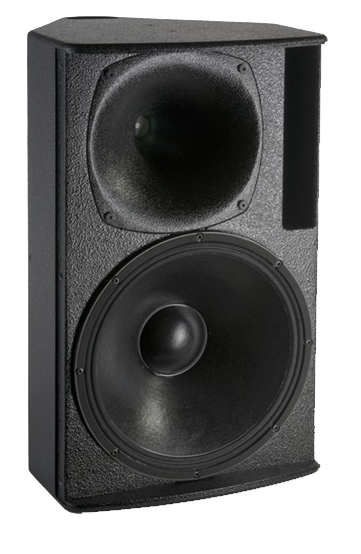

|| Coda Audio / G715-96

3-WAY HIGH POWER FULL RANGE MULTIDESIGN

3-way high output versatile full range system, multidesign enclosure, power handling 1000 W AES, 1.4" coaxial neodymium driver, 15" neodymium woofer.

Coda.Tabelle.1
blockHeaderEditIcon
G715-96 SPECIFICATION
Type: 3-way high power full range system, multidesign enclosure
Application: High output short / medium throw or stage monitor
Frequency response: 50 Hz - 21 kHz (-3 dB)
Power handling AES: 1000 W
Peak power: 4000 W
Sensitivity: 98 dB
Max. SPL peak: 134 dB
Dispersion: 90° x 60°
Components:
Low frequency: 15” neodymium woofer, 4” (101.6 mm) voice coil, 1000W (AES)
High frequency: 1.4” neodymium coaxial driver, 3.5" (90 mm) + 1.75" (44.4 mm) voice coil, 150W + 80W (AES)
Crossover: 750 Hz, 6.3 kHz passsive
Nominal impedance: 8 Ω
Input connectors: 2x Neutrik™ NL4MP
Suspension: 6x M6 threated points for use with optional U-bracket
Enclosure material: 15/18 mm birch plywood
Finish: Textured black paint
Dimensions (WxHxD): 420x700x380 mm
Net weight: 24.5 kg
Weatherproof version: Optional

Coda.bild.3
blockHeaderEditIcon
Coda.G715.bild.1
blockHeaderEditIcon
Coda.2
blockHeaderEditIcon

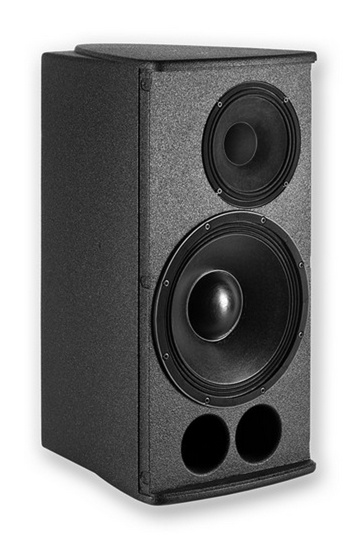

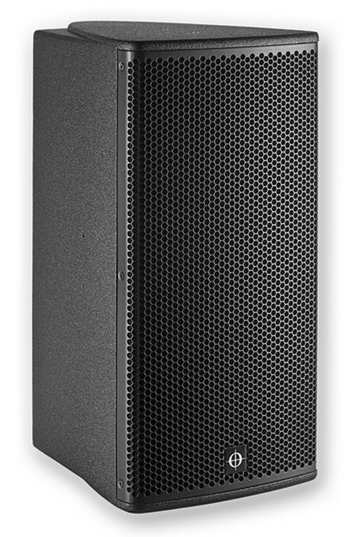

|| Coda Audio / D20

3-way coherent point source technology providing true full range performance (35 Hz – 20 kHz), 8”/1.75” coaxial driver and 12” extremely high excursion cone driver, high power handling of 1000 W (AES), symmetrical coverage of 90°, optimized for near-field applications

Coda.tabelle.2
blockHeaderEditIcon
G715-96 SPECIFICATION
Type: Compact 3-way true full range installation system
Application: Superior quality near-field applications with extended low range
Frequency response:

35 Hz - 20 kHz (-4 dB)

Power handling AES: 1000 W
Peak power: 4000 W
Sensitivity: 97 dB*
Max. SPL peak: 133 dB**
Dispersion: 90° conical
Low frequency: 12” woofer, 1000 W (AES)
High frequency: 8”/1.75” coaxial driver, Mid: 2" (51 mm), High: 1.75" (44.4 mm) voice coil, 180 W + 80 W (AES)
Crossover: 300 Hz, 1.3 kHz passive
Nominal impedance: 4 Ω
Cabinets per amp channel: 1***
Input connectors: 2x Neutrik™ NL4MP
Suspension: 10x M6 threated points
Enclosure material: Birch plywood
Finish: Polyurea black coating (water resistant)
Dimensions (WxHxD): 342 x 700 x 425 mm
Net weight: 26 kg
Weatherproof version: Optional

* Half-space loading
** Measured with pink noise 6 dB crest factor
*** In low SPL applications up to 2x D20 per channel can be connected
